Counted as first among the best, we provide
clients with the premium quality of ULPA Filter. Large dust holding capacity and excellent air filtration efficiency make the
ULPA filter highly demanded. Furthermore, the ULPA filter is admired for its fine uniformity of air
velocity. The filter is used for removal of dust and dirt from different industrial processes and
applications.
Features:
Specifications:

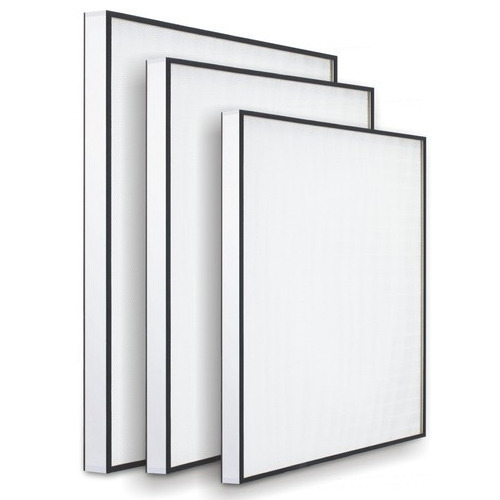

As per the variegated requirements of our clients, we are offering a broad collection of Mini Plate HEPA Filter. The offered filters has the ability to capture 99. 97% of particles 0. 3 microns in diameter. These products are manufactured using excellent quality raw material and latest technology by our skilled professionals. In order to ensure quality, these products are stringently tested on various parameters by our experts. Apart from this, remarkable quality and easy installation increase the demand of our offered range in the market.
Features:
Low pressure drop due to pleated configuration
Easy to install
Good mechanical strength
Technical specifications:
flange type & box type
customized sizes are available on request
filtration rating: 0. 3 micron & more
frame material: ss 304 / gi (galvanized steel) / aluminum.
filtration efficiency: 90 – 99. 9 %
filter media: glass fiber media / spun bonded polyester media.
Common specifications.
Dimensions (mm) |
Filter area (m²) |
Wind speed at 0.45m/s the resistance(Pa) |
Rated air flow (m³/h) |
width×height×depth |
|||
305×305×69 |
2.7 |
200-220 |
250 |
305×610×69 |
5.5 |
500 |
|
610×610×69 |
11.3 |
1000 |
|
915×610×69 |
17.0 |
1500 |
|
1219×610×69 |
22.7 |
2000 |
|
305×305×90 |
3.7 |
300 |
|
305×610×90 |
7.5 |
550 |
|
610×610×90 |
15.4 |
1100 |
|
915×610×90 |
23.2 |
1600 |
|
1219×610×90 |
31.1 |
2500 |
|
305×305×135 |
3.6 |
300 |
|
305×610×135 |
7.4 |
550 |
|
610×610×135 |
14.7 |
1100 |
|
915×610×135 |
22.0 |
1600 |
|
1219×610×135 |
29.4 |
2500 |
Other Information
